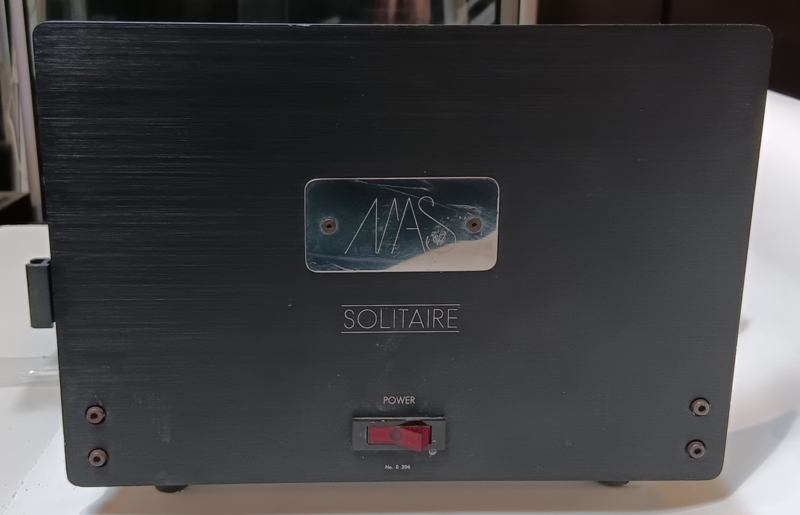

Metaxas Solitaire

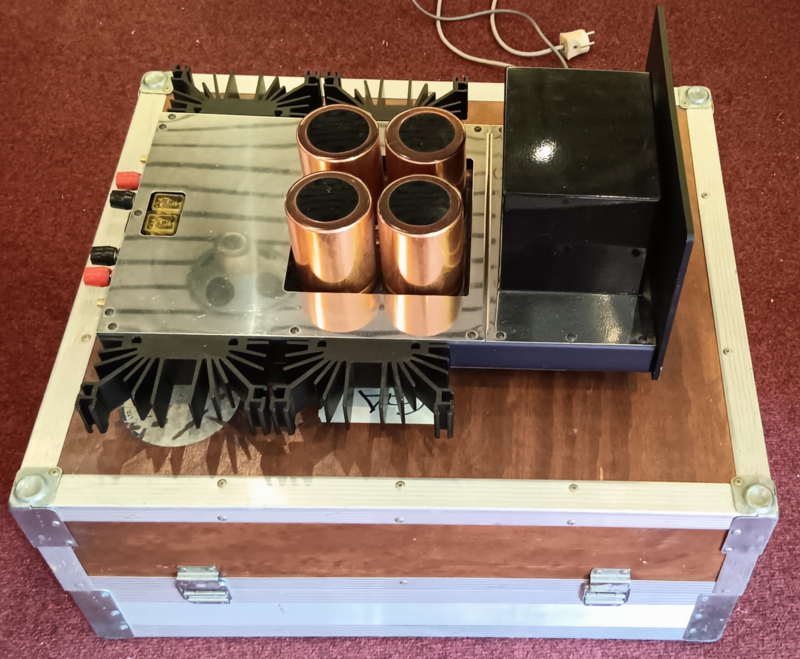

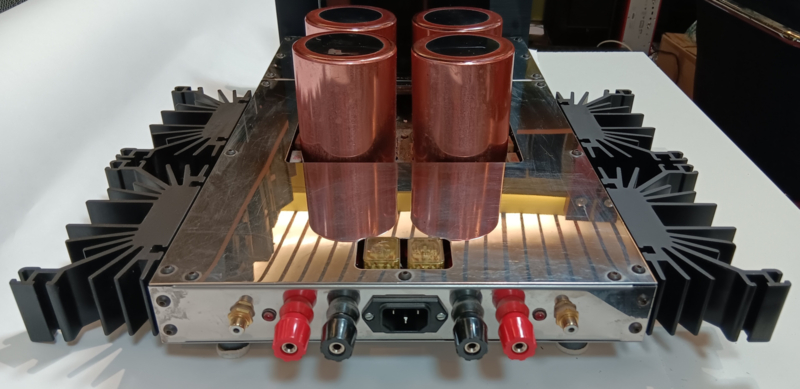

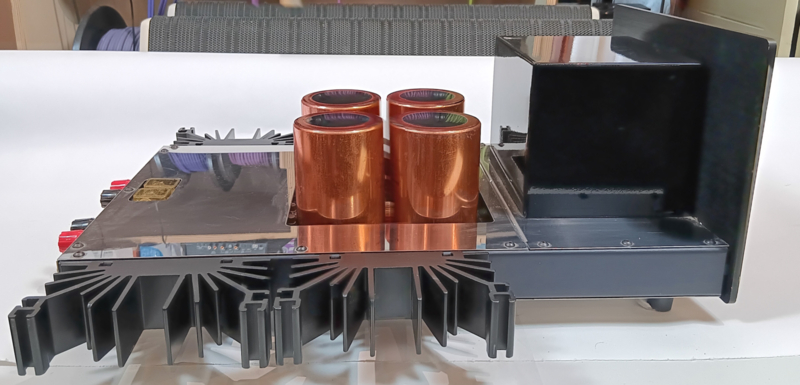

The Solitaire combines two completely dual-mono ultra high-speed power amplifiers onto one chassis, sharing only the large 1600 WATT laminated transformer to produce over 100 WATTS per channel from DC to well over 500kHz into any known speaker load with absolute stability.

Specifications

FREQUENCY RESPONSE: DC - 1.0MHz (-3dB) dictated by input filter (without filter 10 Mega Hertz).

POWER OUTPUT : 130WRMS per channel into 8 Ohms with no more than 0.05% T.H.D.

DAMPING FACTOR: Greater than 500 wide band

SLEW RATE: Greater than 1000V/us small and large signal

T.H.D.: Less than 0.05% sideband

I.M.D.(S.M.P.T.E.): Less than 0.05% sideband

SIGNAL/NOISE: -117dBV unweighed input shorted

SENSITIVITY: 0.8VRMS in for 100WRMS out (28dB)

INPUT IMPEDANCE: 130kOhms in parallel with 82pF
